Standalone ZTE WF830: How to Unlock and Run the Outdoor LTE CPE Without IDU

·

by

mrw

Standalone ZTE WF830: How to Unlock and Run the Outdoor LTE CPE Without IDU

The ZTE WF830 is a solid, outdoor LTE Cat 6 unit (ODU) frequently bundled with proprietary ISP indoor routers (IDU). However, you do not need the original indoor router to use it as a standalone backup WAN connection. All it requires is a 24V Passive PoE injector, an FTDI/CP2102 serial adapter for initial provisioning, and a few terminal commands to bypass software locks.

In this guide, we will cover the step-by-step process of accessing the internal serial console, unlocking Telnet, configuring APN via CLI, and avoiding critical GUI settings that can lock or brick the unit.

Prerequisites & Hardware Requirements

  • ZTE WF830 Outdoor Unit (ODU)
  • 24V Passive PoE Injector (Required to power the unit over Ethernet)
  • USB-to-UART Serial Adapter (3.3V / CP2102 or FTDI)
  • Ethernet Cable
  • Terminal Software: PuTTY, Tera Term, or Minicom
  • SIM Card: PIN lock disabled prior to insertion

Step 1: UART Hardware Connection

  1. Disassemble the WF830 enclosure to access the PCB.
  2. Locate the 4-pin UART header on the board.
  3. Connect your USB-to-UART adapter (CP2102) to the header pins:
    • GND -> GND
    • TX -> RX (Adapter)
    • RX -> TX (Adapter)
    • (Do NOT connect the VCC 3.3V/5V pin)
  4. Plug the CP2102 into your PC and open your terminal emulator:
    • Baud Rate: 115200
    • Data Bits: 8 / Parity: None / Stop Bits: 1

Step 2: Initial Network Setup & GUI Recovery

Power on the WF830 via the 24V PoE injector and connect the LAN port of the PoE injector to your PC.

1. Bring up the Ethernet interface via UART

Once the boot sequence pauses or finishes in the UART terminal, bring up the network interface manually:

ifconfig eth0 169.254.0.1 netmask 255.255.255.0 up

2. Configure static IP on your PC

Set your PC’s Ethernet adapter settings to:

  • IP Address: 169.254.0.2
  • Subnet Mask: 255.255.255.0
  • Default Gateway: 169.254.0.1

3. Factory Reset via Web GUI

  1. Open your browser and navigate to http://169.254.0.1.
  2. Go to System Settings -> Factory Reset and click Apply.
  3. In the LTE Settings tab, switch Enable to ON (confirm the reboot popup).
  4. Watch the UART console as the device reboots back to factory defaults with DHCP enabled.

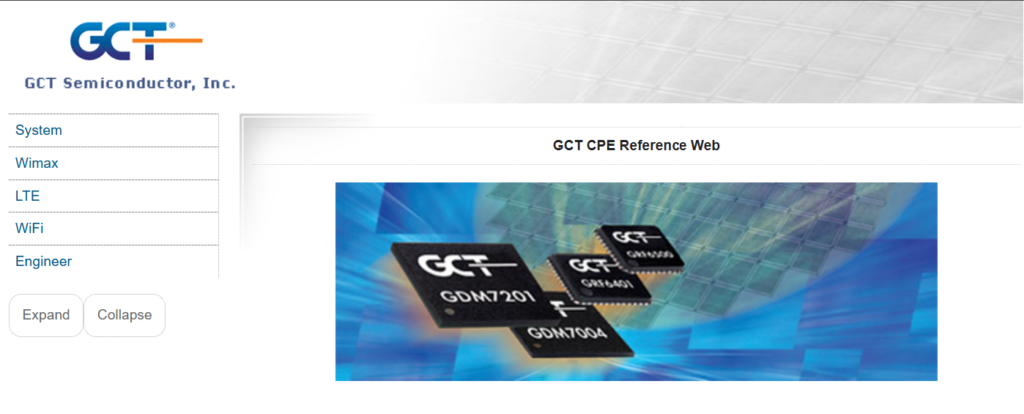

Web GUI main screen

Step 3: Enabling Telnet & Custom APN via ucfg

After the reboot, open PuTTY to establish a Telnet session:

  • Host IP: 169.254.0.1
  • Port: 23 (Telnet)
  • Username: root
  • Password: Si8a&2vV9 (fallback alternative on older firmware: gct)

Once logged in, execute the following configuration commands to disable VLAN locks, configure your provider’s APN, and turn off unnecessary protocols.

1. Disable LAN VLAN Tagging

ucfg set config lan vlan ENABLE 0

2. Set Operator APN Parameters

Replace YOUR_OPERATOR with your ISP name (e.g., Plus, Orange, Play) and YOUR_APN with your provider’s APN string (e.g., internet or darmowy for Aero2):

Set APN Provider Label

ucfg set config wan lte apntable apn1 pdn_label YOUR_OPERATOR

Set APN String

ucfg set config wan lte apntable apn1 apn_name YOUR_APN

3. Disable WiMAX Protocol

ucfg set config wan wimax ENABLE 0

4. Save & Reboot

reboot

After the reboot completes, the modem will connect to the cellular network automatically. You can now disconnect the CP2102 serial programmer.

The GUI Danger Zone: What NOT to Touch

CRITICAL WARNING: Changing specific WAN or APN settings inside the Web GUI will trigger a bootloop or permanently lock the LTE modem, forcing you to start the entire serial recovery process from scratch.

DO NOT TOUCH in Web GUI (CLI Only):

  • LTE APN Table: Never modify or disable APN entries in the Web UI. Index parameters reset on reboot and lock the cellular module.
  • Ethernet / USB Network Settings: Modifying these causes immediate loss of console access and corrupts VLAN tables.
  • WiMAX Toggle: Do not touch in GUI (use the ucfg Telnet command above instead).
  • IMEI Field: Leave untouched.

SAFE to Modify in Web GUI:

  • PLMN Search Type & Extension Info: Safe to adjust for band locking / carrier scanning.
  • EMM & PSM Timers: Safe to modify.
  • Location Services: Safe.
  • SMS Management: Reading, deleting, and SMS-over-IP toggling work without issues.
  • VoLTE: Recommended to set OFF (VoLTE does not function without the original IDU unit, but toggling it will not brick the device).

Summary

By executing a few ucfg configuration tweaks over Telnet and powering the device via 24V PoE, the ZTE WF830 becomes a cost-effective, high-gain outdoor LTE router perfect for failover links or homelab setups.
